High strength shafts feature 1350 U-joints. These will take just about any abuse you can throw at them.

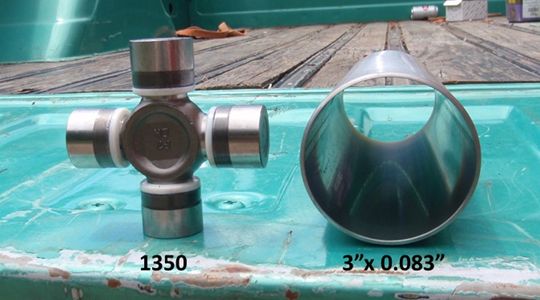

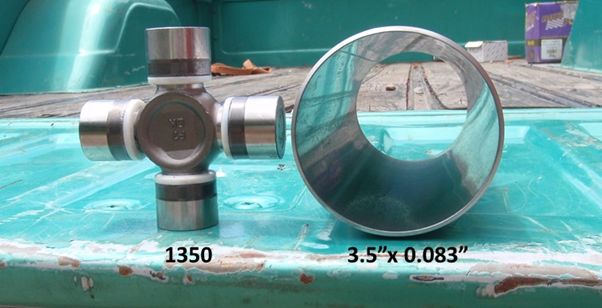

Thicker wall 0.083" DOM tubing and stronger 1350 U-joints allows the shafts to withstand extreme applications.
Steel DOM tubing: 3" or 3.5"
These shafts are built with, 1350 series, Spicer Life Series U-Joints for high strength and long life.
All Mega Series Driveshafts are precision high speed balanced on our Hines DL-500 driveline balancer.
OC Driveshaft Mega Series Driveshaft are available in a variety of combinations of transmissions and differentials.
Note! GM TH400 with threaded hole in output shaft is 'Fixed Yoke' transmission and requires a counterbored slip yoke only available in Sonnax.
Most of these transmission slip yokes are on the shelf
Prices include a standard transmission slip yoke. Add $80 for a Sonnax Chrome Moly upgrade.
Differential end includes the legendary solid body 1350 Spicer U-Joint.

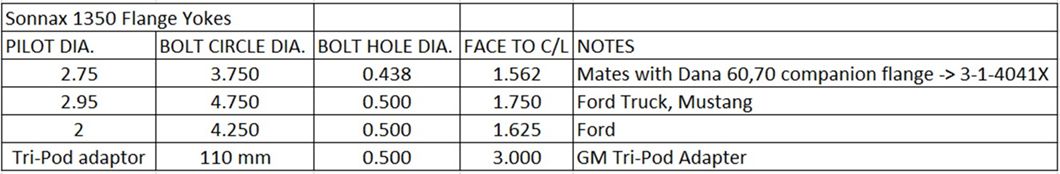

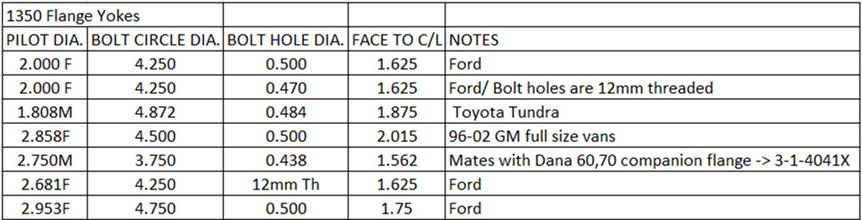

The following flanges are usually on the shelf:
All flanges are equipped with 1350 series Spicer solid body U-Joints.
Mega Series Driveshafts are available in 3" and 3.5" DOM tubing
Maximum Driveshaft Length
3", Maximum Center to Center Length = 52"
3.5", Maximum Center to Center Length = 61"
View Sample Order Form
