Fill out form to build your ALUMINUM driveshaft

What to expect from this order form:

how to measure and properly select driveshaft components
how to properly measure the length of the driveshaft assembly
verify selections and submit order form
purchase and checkout in our secure storefront

Click NEXT to begin.

This form will help you gather the measurements necessary to build a driveshaft for your application.

IMPORTANT NOTES:

Always measure driveshaft length with vehicle suspension at ride height.
We measure everything in inches.
When measuring anything under 6 inches, use a 6-inch scale or calipers, avoid using a tape measure.

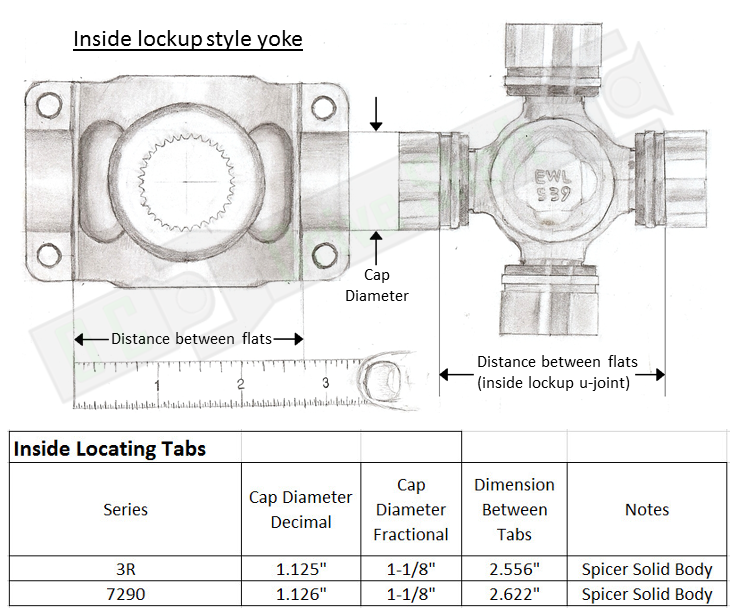

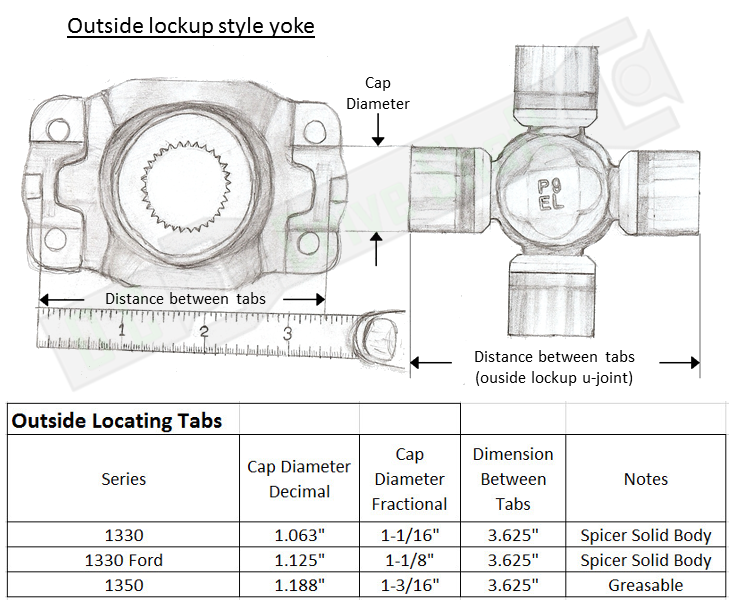

Measurement Guide:

NOTE: Maximum Overall Length for 3" Aluminum Shaft is 55.0". WHY? Click HERE to find out.

Dimensions are measured in inches and can be entered as decimals (eg. 0.75 or 20.125)

Make selection from list below

Note: GM TH400 with threaded hole in output shaft is 'Fixed Yoke' transmission and requires a .550" counterbored slip yoke, only available in Sonnax 1350 Chromoly Slip Yoke.

Slip Yoke choices are displayed in 2 categories:

Standard: Slip yokes from Spicer, Neapco and PTI are included in the driveshaft price. (Includes Ford, GM)

Sonnax Chrome Moly (add $80): Forged Chromoly slip yokes are available for popular muscle cars.
