OC Driveshaft > Forms > Aluminum > 1480 > Custom Build Form A5-500-sy

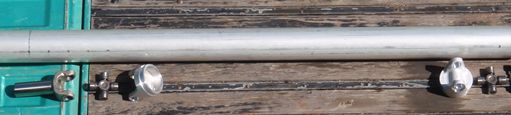

5" ALUMINUM, 1480 Series Slip Yoke To U-Joint

Required measurements and information
This form will help you gather the measurements necessary to build a driveshaft for your application.
IMPORTANT NOTES:
- Always measure driveshaft length with vehicle suspension at ride height.
- We measure everything in inches.
- When measuring anything under 6 inches, use a 6-inch scale or calipers, avoid using a tape measure.
Measurement Guide:

NOTE: Maximum Overall Length for 5" Shaft is 78.0". WHY? Click HERE to find out.
Enter dimensions in fields:
Dimensions are measured in inches and can be entered as decimals (eg. 0.75 or 20.125)
A: Length shaft extends from housing
^((10(\.[0]{1,3}))|(10)|(([0-9])(\.\d{1,3}))|([0-9])|(\.\d{1,3}))$
Valid range (0.000" to 10.000")
B: Overall Length
^(([8-9])(\.\d{1,3})|([1-6][0-9])(\.\d{1,3})|7[0-7](\.\d{1,3})|78(\.0{1,3})|([8-9])|([1-5][0-9])|(7[0-8]))$
Valid range for 5" shafts (8.000" to 78.000")

Select Slip Yoke
Make selection from list below
Note: GM TH400 with threaded hole in output shaft is 'Fixed Yoke' transmission and requires a .550" counterbored slip yoke, only available in Sonnax 1350 Chromoly Slip Yoke.

Slip Yoke choices are displayed Below:

Slip Yokes

31 1.390 6.870 1.8857 Ford C6, 4R100, E4OD

31 1.616 8.339 2.2000 261XHD

34 1.748 9.291 2.3000 Dodge AAM Transfer Case NV273D

1410 Series shafts all come with the legendary Spicer Solid Body 1410 U-joint at the axle pinion.
Need to upgrade your differential pinion yoke to a 1350? Check out our list of available 1350 pinion yokes.

Fill out form to build your ALUMINUM driveshaft
